1993 Raccordo Benzina per Flauto (038/32) F1 Formula 1 Blueprint

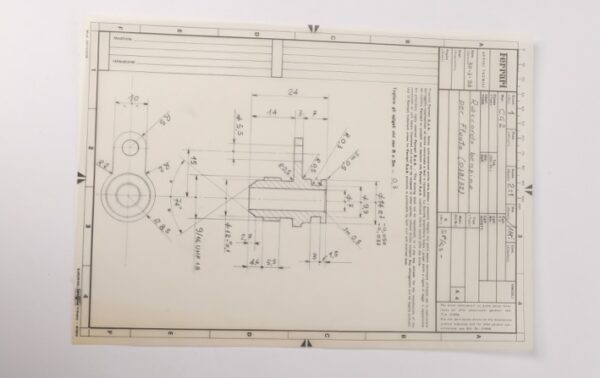

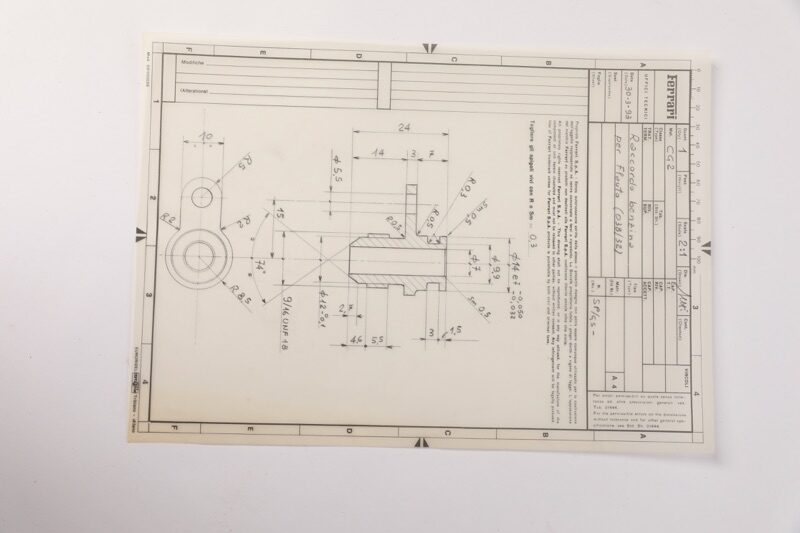

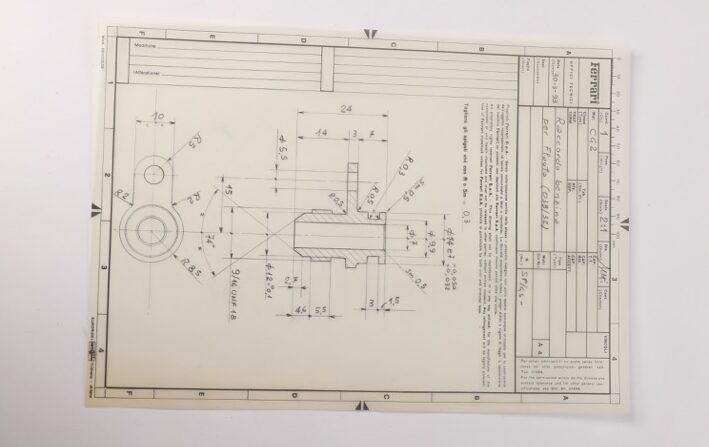

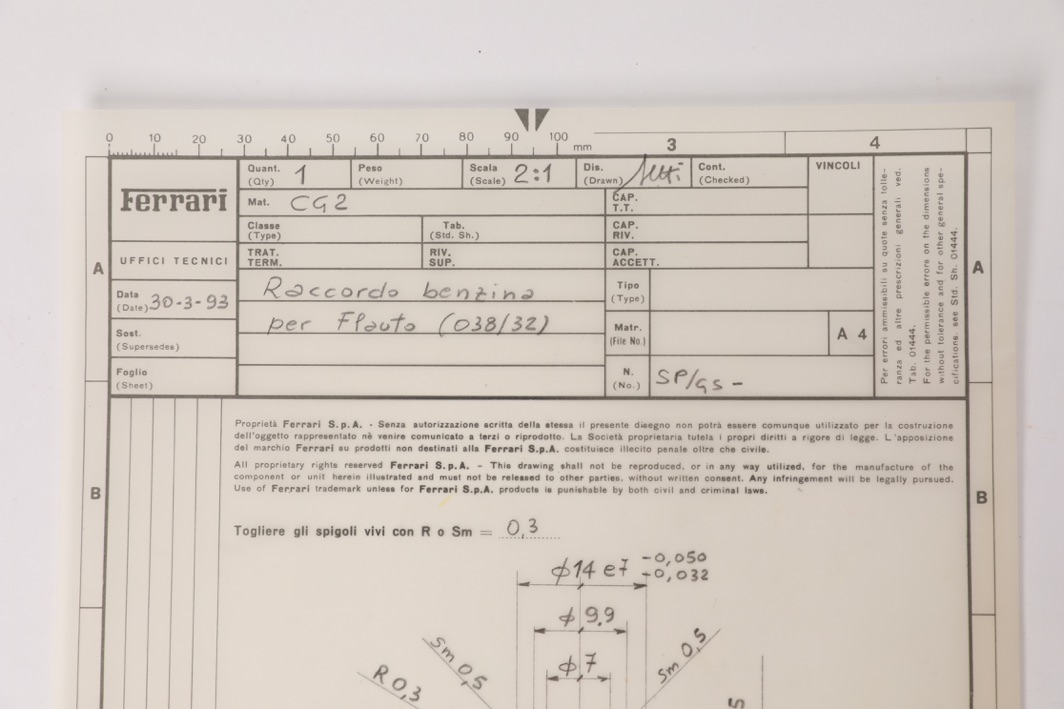

Original Ferrari factory blueprint dated 30 March 1993 for the Raccordo Benzina per Flauto (038/32). Drawn on a 2:1 scale and marked for internal technical use, this sheet captures the precise machining details and tolerances for the fuel rail connector used in period Formula 1 applications. A rare surviving document from the Ferrari Ufficio Tecnico, complete with hand-written notes, signatures and the official Ferrari border and specification tables.

Photos are of the actual item you will receive. More photos can be sent upon request.
