1992 Equipaggio Aspirazione Laterale Valvola Ø5 Molle /39 F1 Formula 1 Blueprint
£500.00

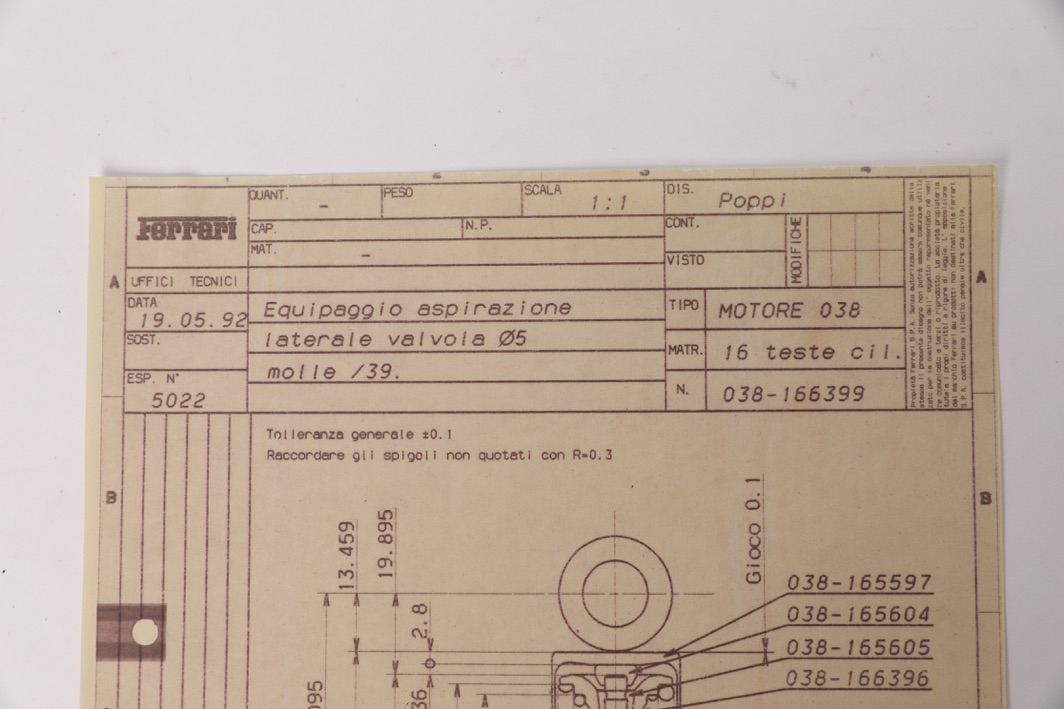

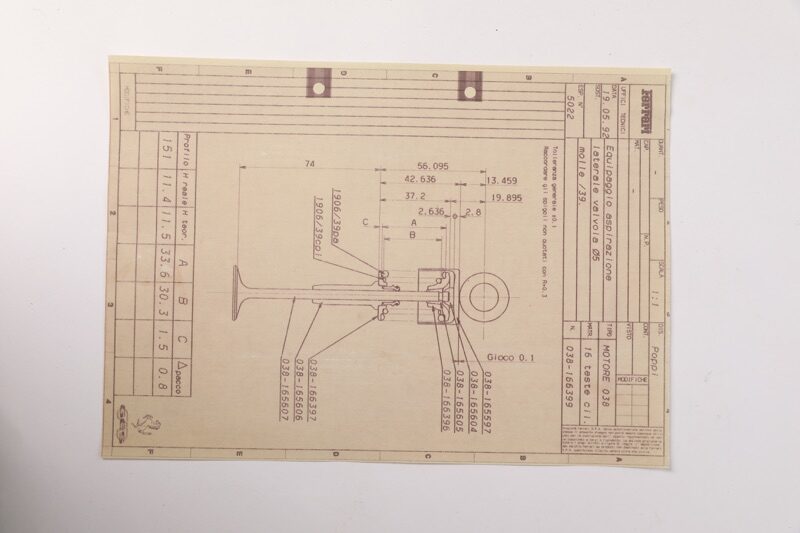

Original Ferrari factory blueprint dated 19 May 1992 for the Equipaggio Aspirazione Laterale Valvola Ø5 Molle /39, created for Motore 038 with 16-valve cylinder heads. This full-scale drawing details the lateral intake valve assembly with associated components, measurements and tolerances, including references such as 038-166399 and related part callouts. Condition is very good with light archive toning, faint handling marks and hole punches from period workshop filing. A rare and authentic piece of early 1990s Formula 1 engineering documentation.
Photos are of the actual item you will receive. More photos can be sent upon request.
Availability: 1 in stock
