1990 Raccordo per Presa Pressione Olio su Trasmettitore F1 Formula 1 Blueprint

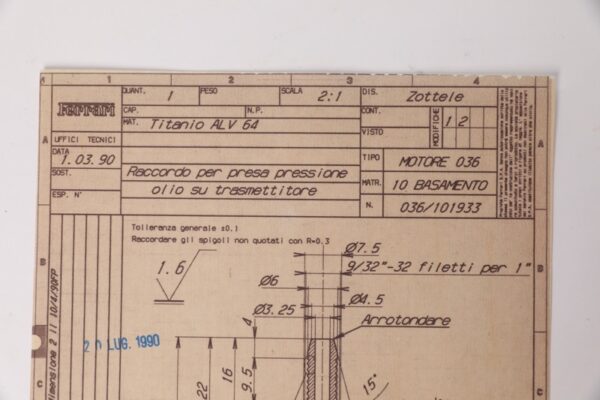

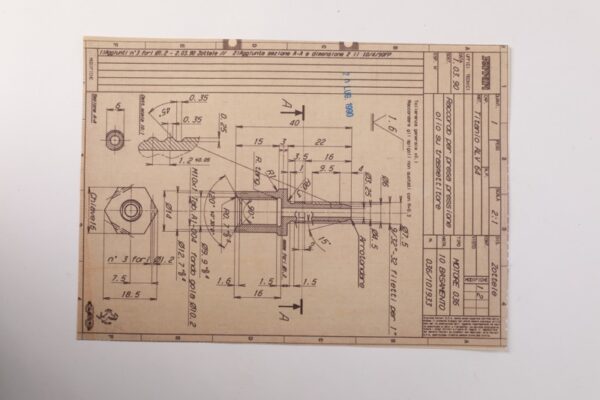

Original Ferrari factory blueprint dated 3 March 1990 for the Raccordo per Presa Pressione Olio su Trasmettitore, produced in Titanio ALV 64 for Motore 036, Basamento 10. Drawn at a 2:1 scale with extensive dimensional callouts, machining notes and thread specifications, this sheet captures the exact geometry and production requirements for the oil pressure pick-up connector used in period Formula 1 engine development. Condition is very good, showing only mild archive toning, light edge wear and period workshop annotations including a blue stamp dated 2 Luglio 1990. A rare technical document from Ferrari’s early 1990s engine programme.

Photos are of the actual item you will receive. More photos can be sent upon request.
