1989 Terminale per Asse CAM Comando Encoder F1 Formula 1 Blueprint

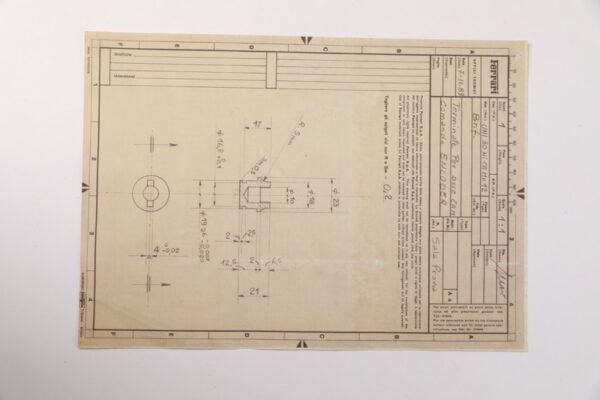

Original Ferrari factory blueprint dated 7 November 1989 for the Terminale per Asse CAM Comando Encoder, produced for Sala Prova use. Drawn at full scale in UNI 30 Ni Cr Mo 12 steel, this technical document includes full machining dimensions, tolerances, and period handwritten markings from the Uffici Tecnici. Condition is good with light handling marks, minor creasing, and edge wear typical of late 1980s working engineering drawings.

Photos are of the actual item you will receive. More photos can be sent upon request.
