1989 Ingranaggio Conduttore Assi e Cam Banchi PIV F1 Formula 1Blueprint
£500.00

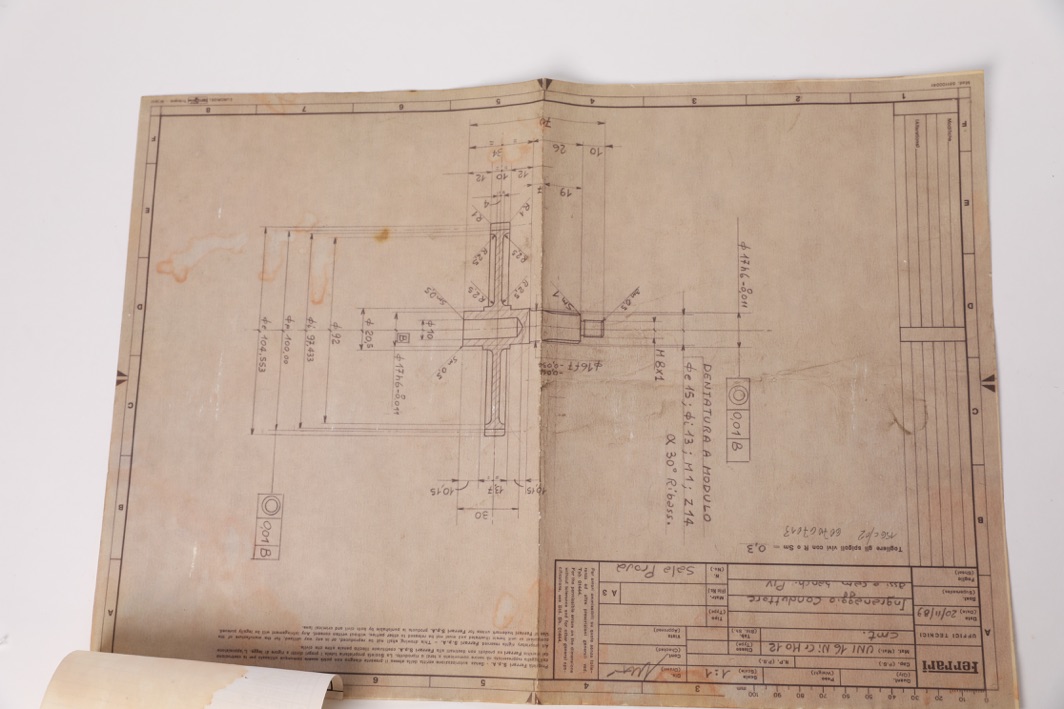

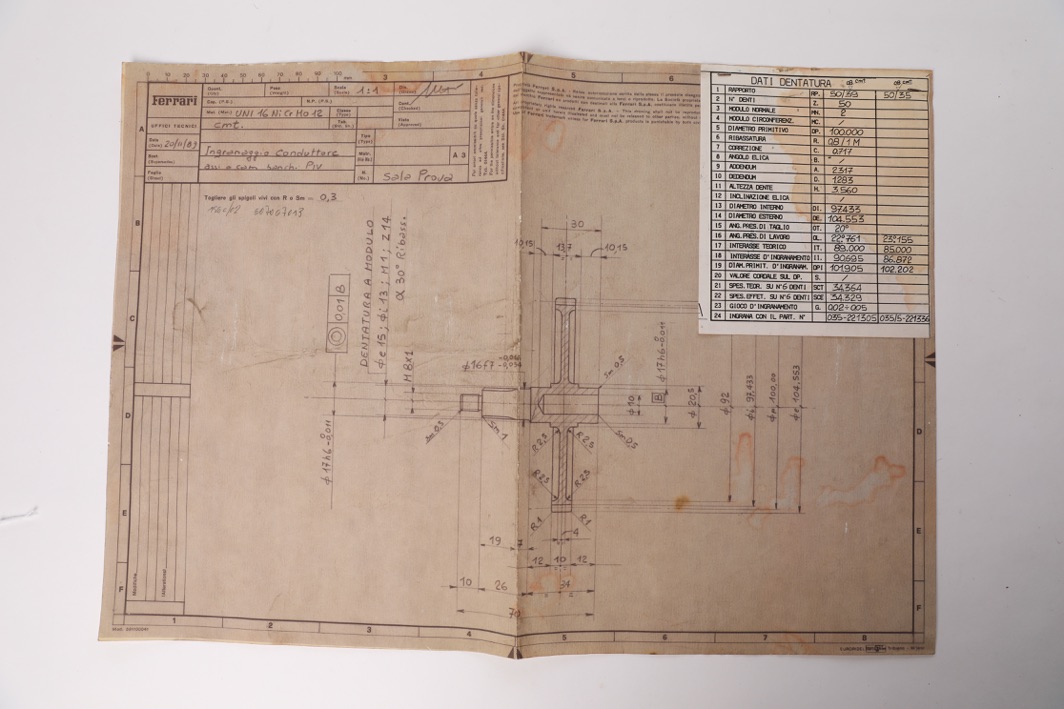

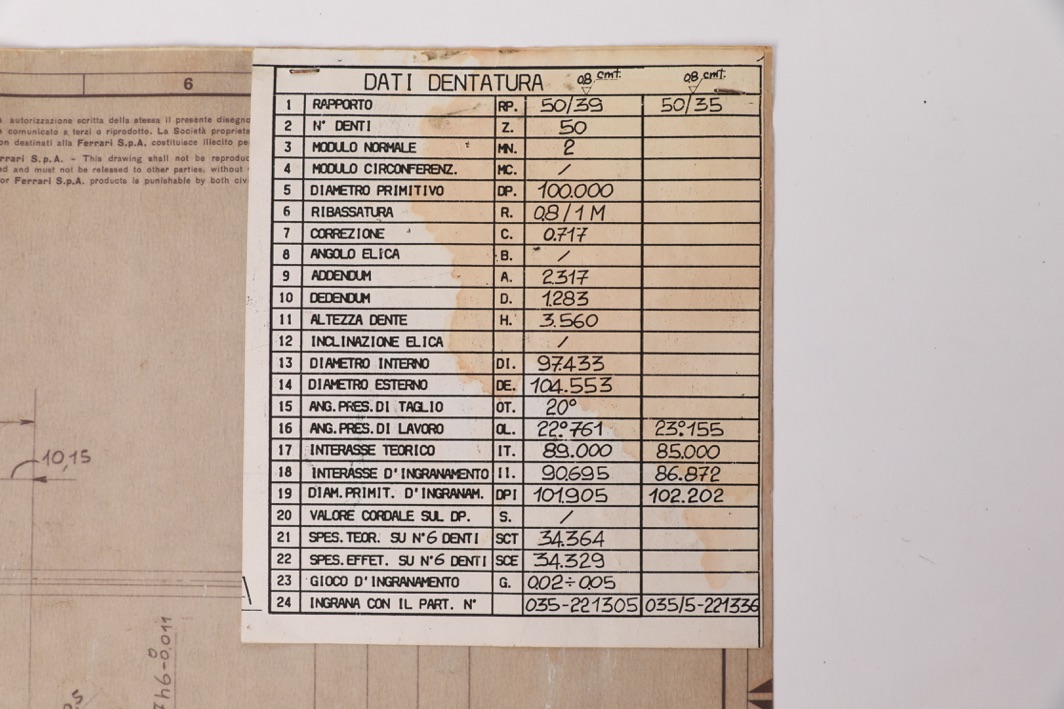

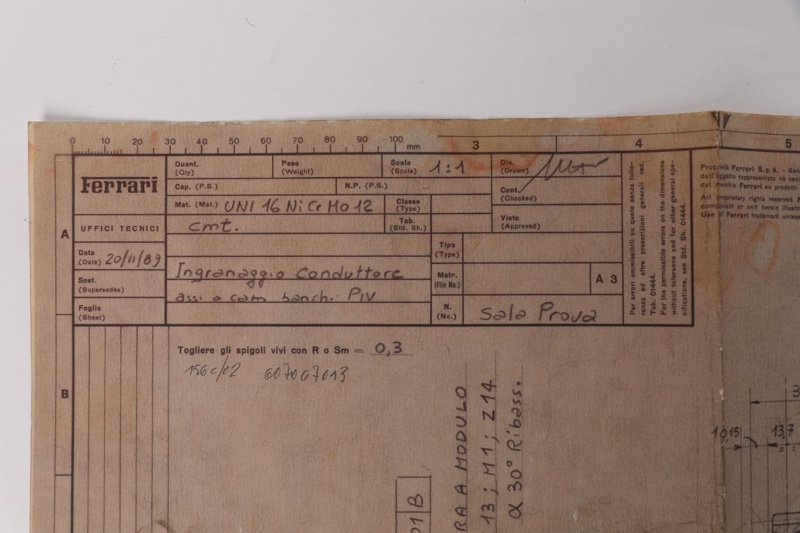

Original Ferrari factory blueprint dated 20 January 1989 for the Ingranaggio Conduttore Assi e Cam Banchi PIV, produced on A3 format and specified in UNI 16 Ni Cr Mo 12 material. This example includes extensive period hand annotations, detailed machining notes, and a full Dati Dentatura chart showing gear ratio, tooth count, diameters, and working tolerances, indicating its use within the Sala Prova environment. Condition is fair with age-related discolouration, staining, and handling marks consistent with a working technical drawing from this era.
Photos are of the actual item you will receive. More photos can be sent upon request.
