1989 Flangia Supporto Encoder F1 Formula 1 Blueprint

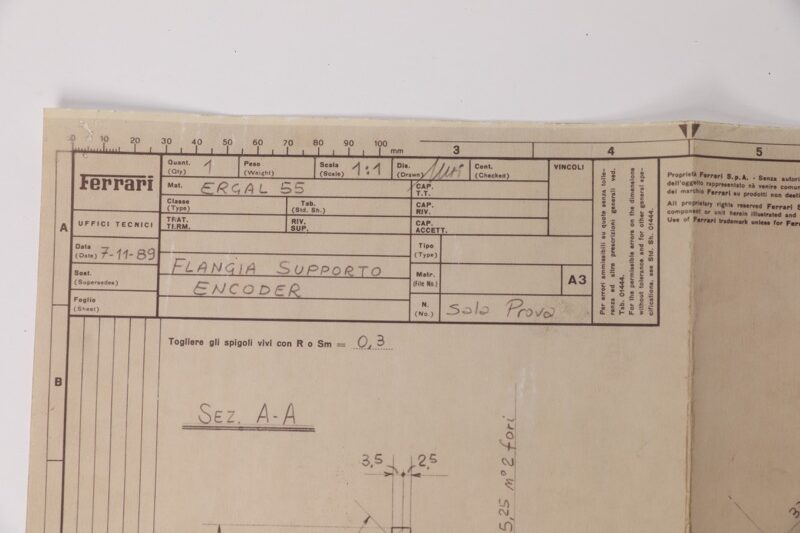

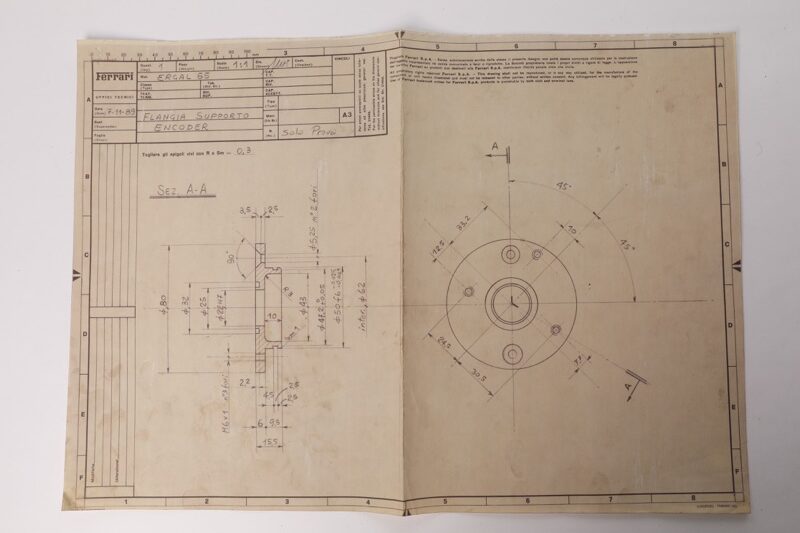

Original Ferrari factory blueprint dated 7 November 1989 for the Flangia Supporto Encoder, drawn at full scale in Ergal 55 and marked Sala Prova. This technical document includes full dimensional measurements, machining tolerances, and period handwritten notes from the Uffici Tecnici. Condition is good with light creasing, minor edge wear, and age-related handling marks consistent with authentic late 1980s Maranello engineering drawings.

Photos are of the actual item you will receive. More photos can be sent upon request.
