1988 Puleggia Sulla Distribuzione Comando Gruppo Pompe per Cinghia 63 Denti F1 Formula 1 Blueprint
£500.00

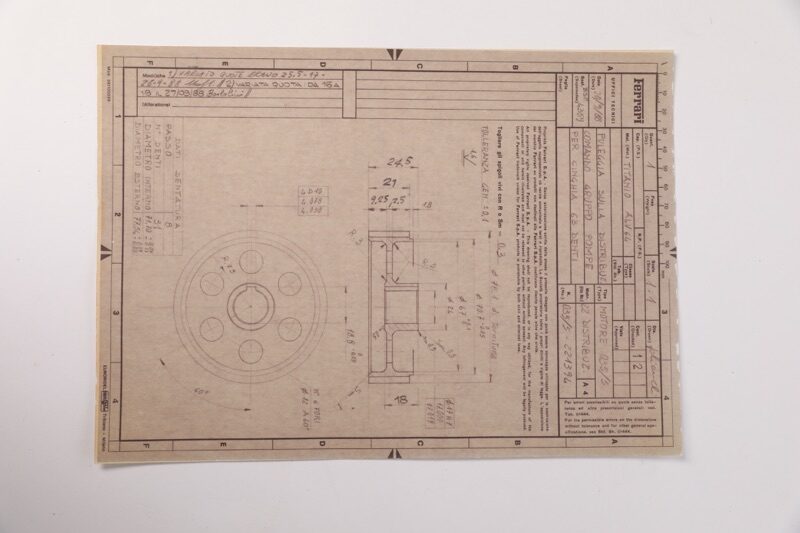

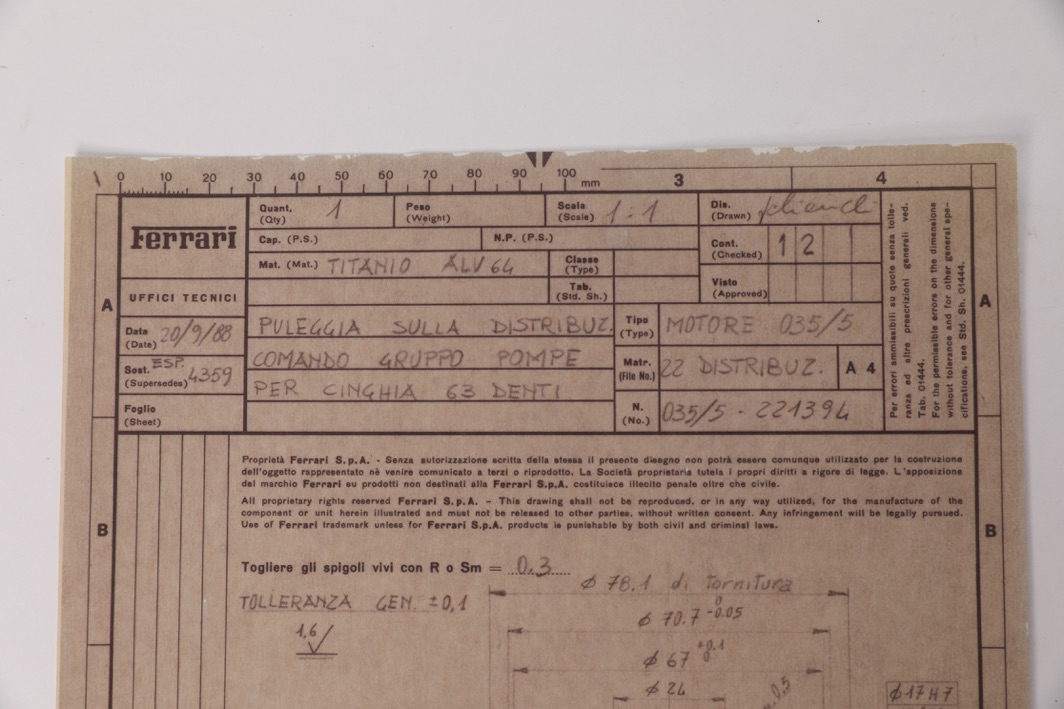

Original Ferrari factory blueprint dated 20 September 1988 for the Puleggia Sulla Distribuzione, used to drive the Gruppo Pompe via a 63-tooth belt on Motore 035/5. Drawn at full scale in Titanio ALV 64, this technical document includes gear data, machining tolerances, and period handwritten workshop notes. Condition is good with light creasing, minor edge wear, and typical handling marks from its use within the Uffici Tecnici.
Photos are of the actual item you will receive. More photos can be sent upon request.
