1983 Ferrari Schema Impianto Benzina Super (Rossa) F1 Formula 1 Blueprint

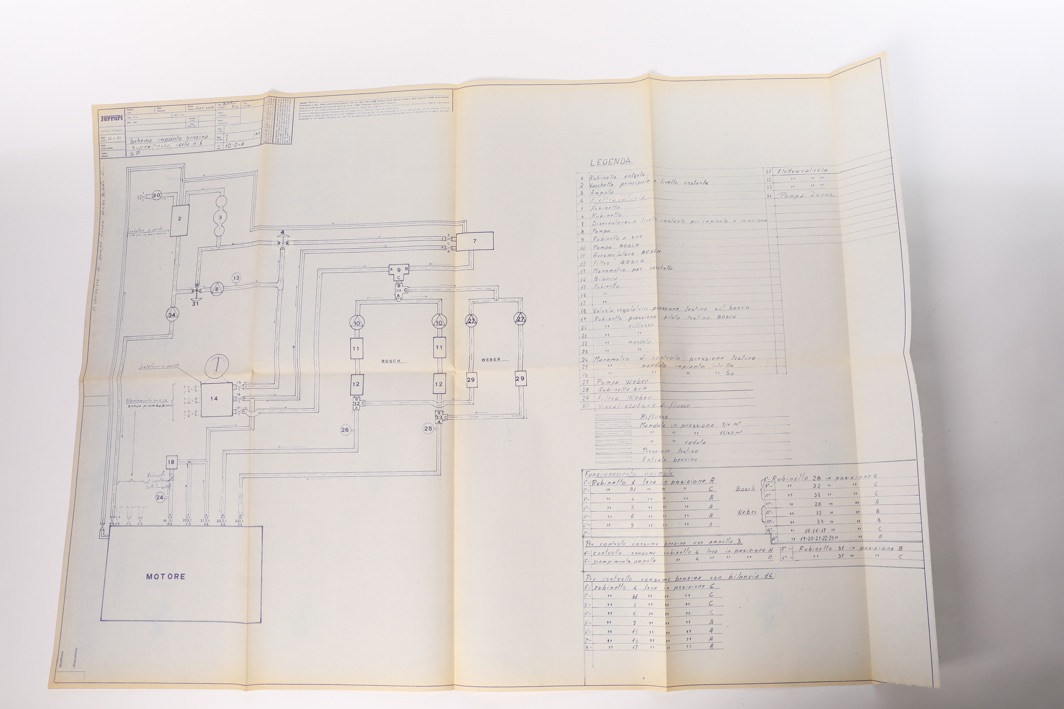

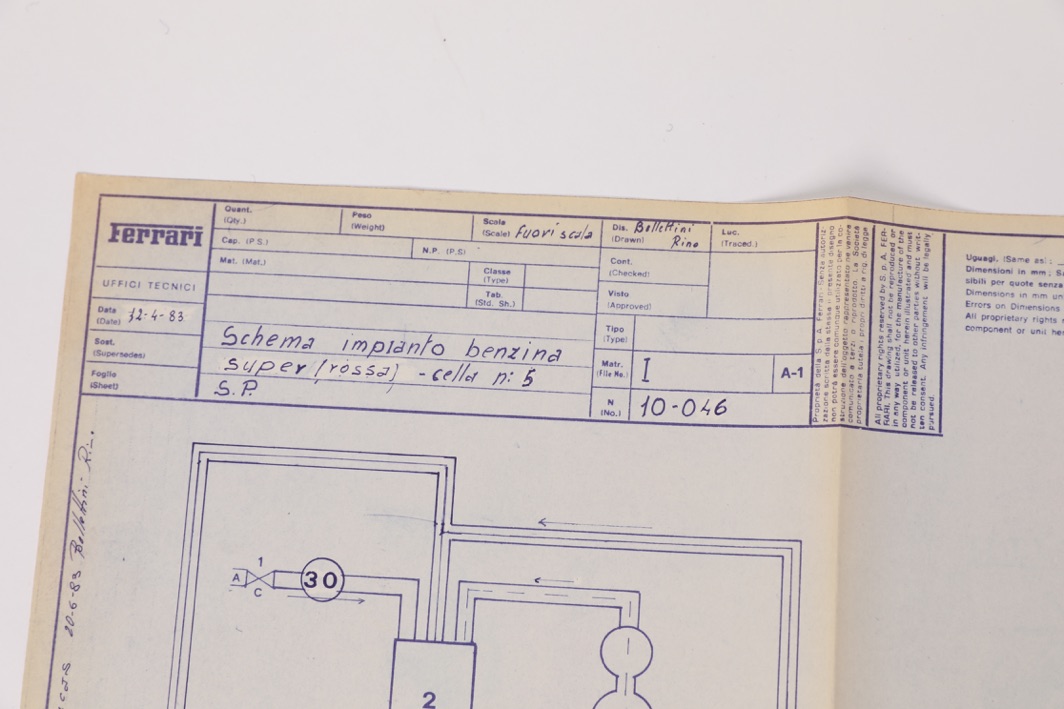

Original Ferrari factory blueprint dated 12 April 1983, drawn by Ballettini Rino of the Uffici Tecnici (Technical Office) at Maranello. The sheet details the fuel system schematic – Schema Impianto Benzina Super (Rossa) –  for cell number 5 (Cella N°5), drawn fuori scala (not to scale) and filed under document number 10-046, sheet I, format A-1. The blueprint retains its original fold marks and faint archival patina consistent with working documents of the period. A rare and visually striking piece of early 1980s Ferrari engineering history from the factory’s own technical department.

Photos are of the actual item you will receive. More photos can be sent upon request.
